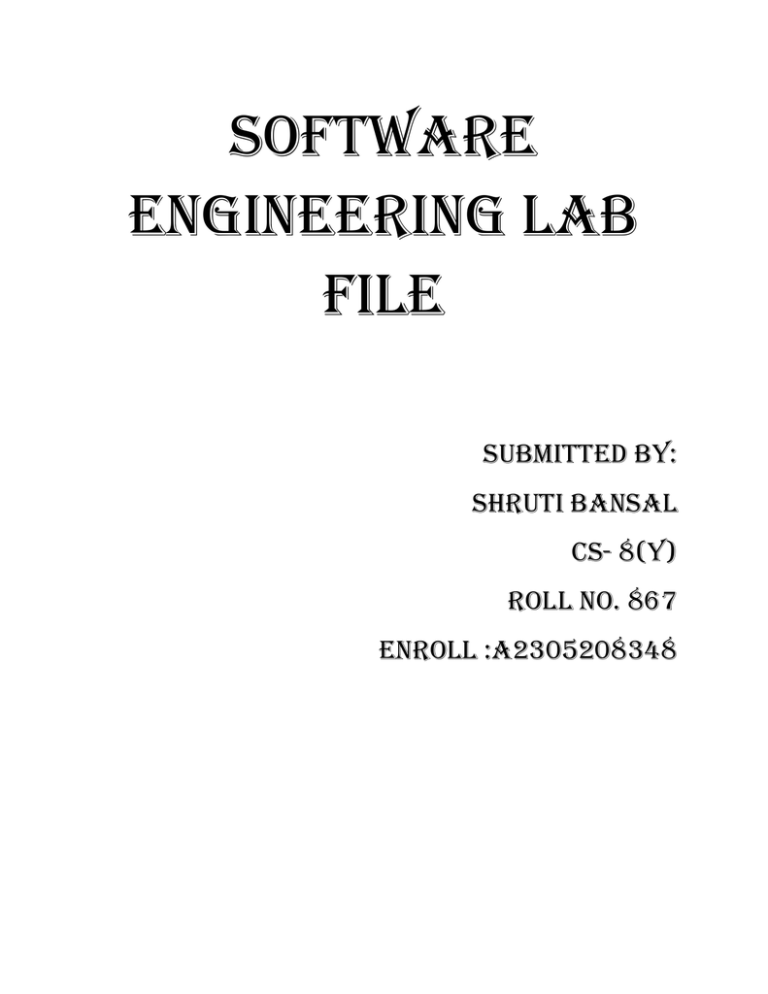

SOFTWARE
ENGINEERING LAB
File
Submitted by:
Shruti bansal
Cs- 8(y)
Roll no. 867
ENROLL :A2305208348
INDEX
S.No
EXPERIMENT
1.
To draw use case diagram for
Registration System.
2.
To draw use case diagram for Library
Information System.
3.
To draw a use case diagram for Hospital
Management System.
4.
To draw a state chart diagram for a
computer system.
5.
To draw state chart diagram for
Registration System.
6.
To draw the activity diagram of
Registration System.
7.
To draw activity diagram for Library
Information System.
8.
To draw use case diagram for
Registration System.
9.
To draw use case diagram for Library
Information System.
10.
To draw a use case diagram for Hospital
Management System.
Date
Remarks
USE CASE DIAGRAM
DEFINITION:
A use case diagram in the Unified Modeling Language (UML) is a type of behavioral diagram
defined by and created from a Use-case analysis.
The use case diagram shows the position or context of the use case among other use cases.
As an organizing mechanism, a set of consistent, coherent use cases promotes a useful picture of
system behavior, a common understanding between the customer/owner/user and the
development team
AIM/PURPOSE OF USE CASE DIAGRAM:
Its purpose is to present a graphical overview of the functionality provided by a system in terms
of actors, their goals (represented as use cases), and any dependencies between those use cases.
The main purpose of a use case diagram is to show what system functions are performed for
which actor.
ELEMENTS OF USE CASE DIAGRAM
Actors: An actor portrays any entity (or entities) that performs certain roles in a given system.
The different roles the actor represents are the actual business roles of users in a given system.
An actor in a use case diagram interacts with a use case. For example, for modeling a banking
application, a customer entity represents an actor in the application.
Use case: A use case in a use case diagram is a visual representation of a distinct business
functionality in a system. The key term here is “distinct business functionality
System boundary: A system boundary defines the scope of what a system will be. A system
cannot have infinite functionality.
EXPERIMENT NO.1
Q.1 Using Rational Rose design a Registration System(detailing actors & use case) and also
draw use case diagram.
AIM: To draw use case diagram for Registration System.
USE CASE DIAGRAM:
extends
enters ID
includes
extends
Login
includes
Save
includes
enters password
Registration Form
Print
includes
extends
Submit
extends
Affidavits
Print
extends
Fill forms
includes
includes
Fee Reciept
Print
includes
Print
Student
Save
Submit
Print
Receiving Documents
Faculty
Verifing Documents
DISCUSSION:
Whenever a student enters another year, he has to get him/her re-registered. During this process a
student has to get affidavit, indemnity bond, fee receipt, registration form and registration fees.
The documents submitted are re verified by the faculty incharge and finally by the program
leader.
The components used in the above use case diagram are:
Actors:
1.Student
2.Faculty
Use Case:
1. Submit
2. Print
3. Recieveing documents
4. Verifying documents
5. Enters id
6. Fill form
7. Registration Form
8. Enters password
9. Affidavits
EXPERIMENT NO.2
Q.2 Using Rational Rose design a library information system(detailing actors & use case) and
also draw use case diagram.
AIM: To draw use case diagram for Library Information System.
USE CASE DIAGRAM:
Book no.
Select a book
Extends
Extends
Student
Date
Extends
fill details in library card
Book name
Extends
submits the library card
Extends
Name
Extends
Enrollment no.
Check info of the book
Extends
Librarian
Stamp on the book
Extends
Issue the book
Return Date on book
Extends
Updates records
Extends
Student Records
Book records
Card no.
DISCUSSION:
The Library Management System is designed & developed for a receipt and issuance of books in
the library along with the student’s details. The books received in the library are entered in
Books Entry form and the new student is entered in the student entry form. When the student
wants to get the desired book the same is issued on the availability basis to the student. The
issuance and due date for the returning of the book is also entered into the Book Issue form under
third menu Book Issue. The student has to pay the fine if any on the basis of no. of days delayed
deposit of the book in the library.
The components used in the use case diagram are:
Actors:
1. Student
2. Librarian
Use case:
1. selects book
2. collects book
3. submits library card
4. gives the fine
5. enters in record register
6. enters student id
7. enters signature
8. books available in library
9. Updates records
10. Enters details
11. collects library card
12. issues books
13. collects book
14. collects fine
EXPERIMENT NO.3
Q.3 Using Rational Rose design a hospital management system(detailing actors & use case) and
also draw use case diagram.
AIM: To draw a use case diagram for Hospital Management System.
USE CASE DIAGRAM:
checks the patient
meets the patient
takes patient to doctor
Nurse
Doctor
gives the prescription
assists the doctor
Discusses the problem
enters patient info
Meets doctor
Administrator
prepares bill
manages records
Takes prescription
Patient
extends
name
extends
collects fees
extends
extends
Submits details
gives fees
extends
age
extends
enter patient's details maintains records
extends
Receptionist
extends
problem
contact no
provides info to visitors
DISCUSSIONS:
A hospital information system (HIS), variously also called clinical information system (CIS) is a
comprehensive, integrated information system designed to manage the administrative, financial
and clinical aspects of a hospital. This encompasses paper-based information processing as well
as data processing machines.It can be composed of one or a few software components with
specialty-specific extensions as well as of a large variety of sub-systems in medical specialties.
Actors:
1.
2.
3.
4.
5.
Patient
Doctor
Nurse
Receptionist
Administrator
Use case:
1. meets the patient
2. gives the prescription
3. Discusses the problem
4. Meets doctor
5. gives fees
6. Submits details
7. checks the patient
8. takes patient to doctor
9. assists the doctor
10.Enters patient info
11.Prepares bill
12.Maintains records
13.Enter patient's details
14.Name
15. Contact no.
16.Age
17.Problem
STATE CHART DIAGRAM
DEFINITION
State Chart diagrams, often used in real time embedded systems than in information systems
,show for class, the order in which incoming calls to operations normally occur and the
conditions under which the operation respond and the response. State chart diagram is one of the
five UML diagrams used to model dynamic nature of a system. They define different states of an
object during its lifetime. And these states are changed by events. So State chart diagrams are
useful to model reactive systems. Reactive systems can be defined as a system that responds to
external or internal events.
AIM / PURPOSE
They are class centric view of system functionality, as opposed to sequence diagram and
collaboration diagram which are use case centric view of system functionality
ELEMENTS OF STATE CHART DIAGRAM






States: Oblong boxes which indicate the stable state of the object between events.
Transitions: The solid arrow which shows possible change of states.
Events: The text on the transition before the ‘/’ showing the incoming call to the object
interface which causes change of the state
Conditions: A Boolean statement in square brackets which qualifies the events.
Actions: The text after the ‘/’ which defines the object response to the transition between
states.
Extra syntax defines state centric functionality.
EXPERIMENT NO.4
Q.4 Using Rational Rose design a state chart diagram for computer system.
AIM: To draw a state chart diagram for a computer system.
STATE CHART DIAGRAM:
On/Off
Press
Restart
idle
Stand by
press
log off
press
Shutdown
DISSCUSSION:
In a state chart diagram we basically define the state through which the system goes through. In
the above state chart diagram,the initiation takes place with the start state(the solid circle).Its
shows an unlabelled transition leading to state ON/OFF . When a state is “on”, all its outgoing
transitions are eligible to fire. For an event to fire,its event must occur and its condition must be
true. When a transition fire,its action is carried out.The state chart diagram of the computer
system helps in describing the changes between the state of instances.
EXPERIMENT NO.5
Q.5 Using Rational Rose design a state chart diagram for Registration system.
AIM: To draw state chart diagram for Registration System.
STATE CHART DIAGRAM:
announce
start
intialize
fill form
open
do not meet the requirements
seat full
close
cancel
DISCUSSION:
In state chart diagram of the registration system we take care of the states through which
registration process takes place. The vital components of the registration system are shown as
states to carry out effective registration process. In the above state chart diagram,the initiation
takes place with the start symbol(the solid circle). Its shows an unlabelled transition leading to
state “announce”.The transitions that take place are supposed to represent actions which occur
quickly and are not interruptable.The events thus created in the above state chart diagram may
trigger an action by an actor or the system being developed.
ACTIVITY DIAGRAM
Activity diagram is another important diagram in UML to describe dynamic aspects of the
system.
Activity diagram is basically a flow chart to represent the flow form one activity to another
activity. The activity can be described as an operation of the system.
So the control flow is drawn from one operation to another. This flow can be sequential,
branched or concurrent. Activity diagrams deals with all type of flow control by using different
elements like fork, join etc.
Purpose:
The basic purposes of activity diagrams are similar to other two diagrams. It captures the
dynamic behaviour of the system. Other two diagrams are used to show the message flow from
one object to another but activity diagram is used to show message flow from one activity to
another.
EXPERIMENT NO.6
Q.6 Using Rational Rose design an activity diagram for Registration system.
AIM: To draw the activity diagram of Registration System.
ACTIVITY DIAGRAM:
Login
Fill registration
form
Fork
Fill hostel
form
Fork
Join
Fee
submission
Document Submission
Join
Approval by the faculty
Section alotmnt
(branch wise)
Commencement of
the session'
Certificates
DISSCUSSIONS:
In an activity diagram we present the activities that are being performed during the system. In
registration system the forms are first filled then the documents are submitted and then verified
by the incharge. Finally the session commences after allotment of sections. All tthese various
activities are performed.
EXPERIMENT NO.7
Q.7 Using Rational Rose design an activity diagram for Library Information System.
AIM: To draw activity diagram for Library Information System.
ACTIVITY DIAGRAM:
Library Entry
Enter NAME
ENTER BATCH
ENTER ENO.
Fork
Join
SELECT BOOK
UPGRADATION
OF DATES
STAMPING OF
LIB. CARD
BOOK ISSUED
RECEIVE LIB.
CARD
RETURN BOOK
DISCUSSIONS:
In library information system activity diagram activities that are performe are: Entry in the
library and giving the specific details of the candidate. Further book is selected by the candidate,
the dates are upgraded, stamp on the book and the book is issued and library card is submitted.
Finally the book is returned and the card is taken back. Thus all these activities are performed.
CLASS DIAGRAM
DEFINITION
In software engineering, a class diagram in the Unified Modeling Language (UML) is a type of
static structure diagram that describes the structure of a system by showing the system’s classes,
their
attributes,
and
the
relationships
between
the
classes.
A class diagram is similar to a family tree. A class diagram consists of a group of classes and
interfaces reflecting important entities of the business domain of the system being modeled, and
the relationships between these classes and interfaces. The classes and interfaces in the diagram
represent the members of a family tree and the relationships between the classes are analogous to
relationships between members in a family free. Interestingly, classes in a class diagram are
interconnected in a hierarchical fashion, like a set of parent classes and related child classes
under the parent classes.
AIM / PURPOSE
Design experts who understand the rules of modeling and designing systems design the system’s
class diagrams. A thing to remember is that a class diagram is a static view of a system. The
structure of a system is represented using class diagrams. Class diagrams are referenced time and
again by the developers while implementing the system.
ELEMENTS OF CLASS DIAGRAM
A class diagram is composed primarily of the following elements that represent the system’s
business entities:
Class: A class represents an entity of a given system that provides an encapsulated
implementation of certain functionality of a given entity. These are exposed by the class to other
classes as methods. Apart from business functionality, a class also has properties that reflect
unique features of a class. The properties of a class are called attributes. A class is represented by
a rectangle
Interface: An interface is a variation of a class. As we saw from the previous point, a class
provides an encapsulated implementation of certain business functionality of a system. An
interface on the other hand provides only a definition of business functionality of a system. A
separate class implements the actual business functionality.
Package: A package provides the ability to group together classes and/or interfaces that are either
similar in nature or related. Grouping these design elements in a package element provides for
better readability of class diagrams, especially complex class diagrams.
EXPERIMENT NO.8
Q.8 Using Rational Rose design a Registration System and also draw class diagram.
AIM: To draw class diagram for Registration System.
CLASS DIAGRAM:
DISCUSSION:
Whenever a student enters another year, he has to get him/her re-registered. During this process a
student has to get affidavit, indemnity bond, fee receipt, registration form and registration fees.
The documents submitted are re verified by the faculty incharge and finally by the program
leader.
EXPERIMENT NO.9
Q.9 Using Rational Rose design a library information system and also draw class diagram.
AIM: To draw class diagram for Library Information System.
CLASS DIAGRAM:
DISCUSSION:
The Library Management System is designed & developed for a receipt and issuance of books in
the library along with the student’s details. The books received in the library are entered in
Books Entry form and the new student is entered in the student entry form. When the student
wants to get the desired book the same is issued on the availability basis to the student. The
issuance and due date for the returning of the book is also entered into the Book Issue form under
third menu Book Issue. The student has to pay the fine if any on the basis of no. of days delayed
deposit of the book in the library.
EXPERIMENT NO.10
Q.10 Using Rational Rose design a hospital management system and also draw class diagram.
AIM: To draw a class diagram for Hospital Management System.
CLASS DIAGRAM:
DISCUSSIONS:
A hospital information system (HIS), variously also called clinical information system (CIS) is a
comprehensive, integrated information system designed to manage the administrative, financial
and clinical aspects of a hospital. This encompasses paper-based information processing as well
as data processing machines.It can be composed of one or a few software components with
specialty-specific extensions as well as of a large variety of sub-systems in medical specialties.
