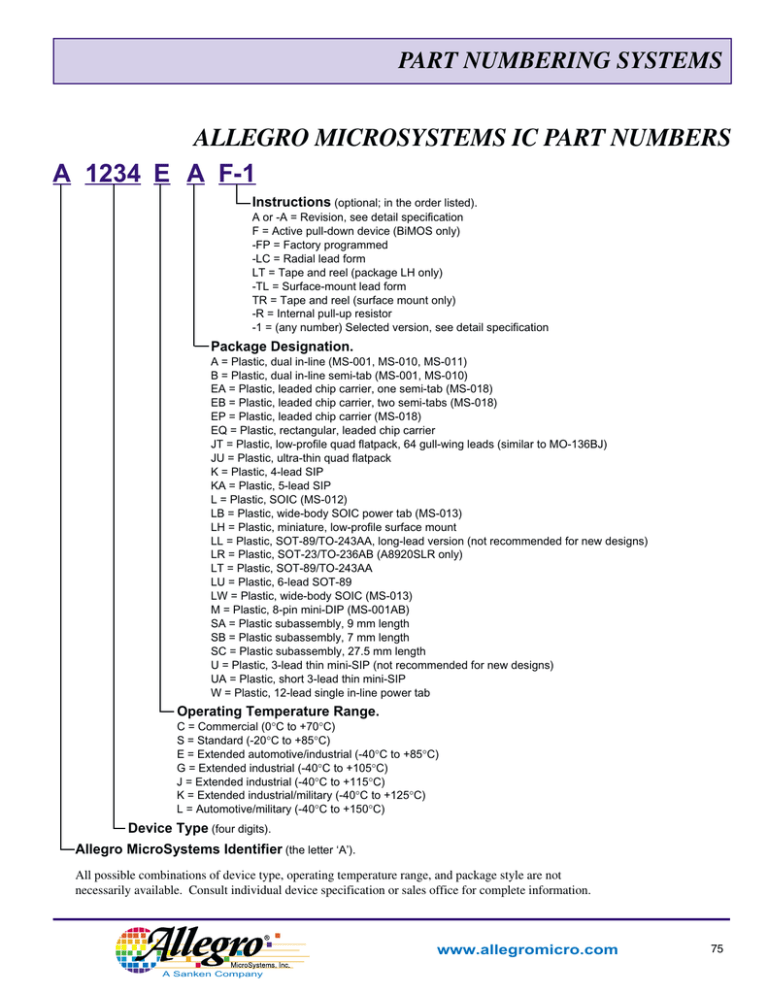

PART NUMBERING SYSTEMS ALLEGRO MICROSYSTEMS IC PART NUMBERS A 1234 E A F-1 Instructions (optional; in the order listed). A or -A = Revision, see detail specification F = Active pull-down device (BiMOS only) -FP = Factory programmed -LC = Radial lead form LT = Tape and reel (package LH only) -TL = Surface-mount lead form TR = Tape and reel (surface mount only) -R = Internal pull-up resistor -1 = (any number) Selected version, see detail specification Package Designation. A = Plastic, dual in-line (MS-001, MS-010, MS-011) B = Plastic, dual in-line semi-tab (MS-001, MS-010) EA = Plastic, leaded chip carrier, one semi-tab (MS-018) EB = Plastic, leaded chip carrier, two semi-tabs (MS-018) EP = Plastic, leaded chip carrier (MS-018) EQ = Plastic, rectangular, leaded chip carrier JT = Plastic, low-profile quad flatpack, 64 gull-wing leads (similar to MO-136BJ) JU = Plastic, ultra-thin quad flatpack K = Plastic, 4-lead SIP KA = Plastic, 5-lead SIP L = Plastic, SOIC (MS-012) LB = Plastic, wide-body SOIC power tab (MS-013) LH = Plastic, miniature, low-profile surface mount LL = Plastic, SOT-89/TO-243AA, long-lead version (not recommended for new designs) LR = Plastic, SOT-23/TO-236AB (A8920SLR only) LT = Plastic, SOT-89/TO-243AA LU = Plastic, 6-lead SOT-89 LW = Plastic, wide-body SOIC (MS-013) M = Plastic, 8-pin mini-DIP (MS-001AB) SA = Plastic subassembly, 9 mm length SB = Plastic subassembly, 7 mm length SC = Plastic subassembly, 27.5 mm length U = Plastic, 3-lead thin mini-SIP (not recommended for new designs) UA = Plastic, short 3-lead thin mini-SIP W = Plastic, 12-lead single in-line power tab Operating Temperature Range. C = Commercial (0°C to +70°C) S = Standard (-20°C to +85°C) E = Extended automotive/industrial (-40°C to +85°C) G = Extended industrial (-40°C to +105°C) J = Extended industrial (-40°C to +115°C) K = Extended industrial/military (-40°C to +125°C) L = Automotive/military (-40°C to +150°C) Device Type (four digits). Allegro MicroSystems Identifier (the letter ‘A’). All possible combinations of device type, operating temperature range, and package style are not necessarily available. Consult individual device specification or sales office for complete information. www.allegromicro.com A Sanken Company 75 PART NUMBERING SYSTEMS ORIGINAL IC PART NUMBERS UC N 5810 A F-1 Instructions. Same as Allegro IC Part Number System Package Designation. Same as Allegro IC Part Number System Device Type (four digits). Operating Temperature Range. K = Extended automotive/industrial (-40°C to +125°C, Typ.) N = Commercial/industrial (-20°C to +85°C, Typ.) Q = Automotive/industrial (-40°C to +85°C, Typ.) Family. UC = BiMOS UD = Power Driver UG = Hall-Effect UL = Interface Driver All possible combinations of device type, operating temperature range, and package style are not necessarily available. Consult individual device specification or sales office for complete information. 76 www.allegromicro.com A Sanken Company PART NUMBERING SYSTEMS SANKEN PRODUCT PREFIXES Prefix Description Info Prefix Description AG Axial-lead ultra-fast recovery rectifier ❊❏ FMS Full mold high-speed rectifier AK Axial-lead Schottky barrier diode ❊❏ FMU Full mold TO-220/TO-3P fast-recovery rectifier ❊❏ AL Axial-lead ultra-fast recovery rectifier ❊❏ FMV Full mold frame type damper diode ❊❏ AM Axial-lead rectifier ❊❏ FMX Full mold TO-220/TO-3P fast-recovery rectifier ❊❏ AP Axial-lead high-speed rectifier ❊❏ FN NPN transistor AS Axial-lead high-speed rectifier ❊❏ FP PNP transistor AU Axial-lead high-speed rectifier ❊❏ GSC GaAs Schottky diode ❊❏ CCR Sanken power IC - GSF GaAs Schottky diode ❊❏ CSH Switching power supply - HWM Switching power supply CSJ Switching power supply - HVR High-voltage rectifier, axial-lead CTB Center-tap Schottky rectifier LB Rectifier bridge CTG Center-tap ultra-fast recovery rectifier - MPE SMD Schottky diode CTL Center-tap ultra-fast recovery rectifier - PZ Power Zener diode, axial-lead ❏ CTM Center-tap rectifier - R Rectifier, axial-lead avalanche ❊❏ CTU Center-tap fast recovery rectifier - RA Rectifier, axial-lead Schottky barrier diode ❊❏ EA Axial-lead Schottky barrier diode ❊❏ RB Rectifier bridge EG Axial-lead ultra-fast recovery rectifier ❊❏ RBA Rectifier bridge, ultra-fast-recovery EH Axial-lead high-speed rectifier ❊❏ Schottky barrier diode ❊❏ EK Axial-lead Schottky barrier diode ❊❏ RBV Rectifier-bridge, vertical ultra-fast recovery ❊❏ EL Axial-lead ultra-fast recovery rectifier ❊❏ RC Rectifier, axial-lead high-speed ❊❏ EM Axial-lead rectifier ❊❏ RF Rectifier, axial-lead high-speed ❊❏ EN Axial-lead ultra-fast recovery diode ❊❏ RG Rectifier, axial-lead ultra-fast recovery ❊❏ EP Axial-lead high-speed rectifier ❊❏ RH Rectifier, axial-lead high-speed ❊❏ ES Axial-lead high-speed rectifier ❊❏ RJ Rectifier, axial-lead Schottky barrier diode ❊❏ ET PNPN switch ❏ RK Rectifier, axial-lead Schottky barrier diode ❊❏ EU Axial-lead high-speed rectifier ❊❏ RL Rectifier, axial-lead ultra-fast recovery ❊❏ EZ Axial-lead avalanche rectifier ❊❏ RM Rectifier, axial-lead avalanche ❊❏ FKV MOSFET ● RN Rectifier, ultra-fast recovery ❊❏ FMB Full mold TO-220/TO-3P Schottky barrier diode ❊❏ RO Rectifier, axial-lead ❊❏ FMC Full mold ultra-fast recovery rectifier ❊❏ RP Rectifier, axial-lead high-speed ❊❏ FME Full mold Schottky barrier diode ❊❏ RS Rectifier, axial-lead high-speed ❊❏ FMG Full mold TO-3P fast-recovery rectifier ❊❏ RU Rectifier, axial-lead high-speed ❊❏ FML Full mold ultra-fast recovery rectifier ❊❏ RX Rectifier, ultra-fast recovery ❊❏ FMM Full mold TO-220 rectifier ❊❏ RY Rectifier, axial-lead avalanche ❊❏ FMN Full mold ultra-fast-recovery rectifier ❊❏ RZ Rectifier, axial-lead high-speed ❊❏ FMP Full mold TO-220 fast-recovery rectifier ❊❏ SAA Sanken 4-terminal power SMD - FMQ Full mold frame type damper diode ❊❏ SAB Sanken 4-terminal power SMD - FMR Full mold TO-220 ultra-fast-recovery rectifier ❊❏ SAC Sanken 4-terminal power SMD ❏ ❊❏ www.allegromicro.com A Sanken Company Info - ● - ❊❏ ❊❏ - 77 PART NUMBERING SYSTEMS SANKEN PRODUCT PREFIXES (cont’d) Prefix Description Info Prefix Description SAH Sanken 4-terminal power SMD ▲❏ SUM Sanken switching power supply SAI Sanken switching-type regulator ✩❏ SV Silicon varistor Info ❊❏ SDA Sanken 16-terminal power SMD ❏ SWA Sanken switching power supply - SDC Sanken 16-terminal power SMD ●❏ SWB Sanken switching power supply - SDH Sanken 16-terminal power SMD ❏ TF Thyristor, reverse blocking (SCR) SDI Sanken 16-terminal power SMD ❏ TFD Thyristor, reverse-blocking with SDK Sanken stepper-motor driver built-in avalanche diode ■❏ SE Sanken error amplifier IC ❏ TM Thyristor, bidirectional (triac) ■❏ SEC Sanken chip LED ❏ TS Input reactor - SEL Sanken LED ★❏ UB Bridge, high-voltage fast-recovery rectifier - SELU Sanken LED ★❏ UX Axial-lead high-voltage rectifier ❊❏ SFPA SMD Schottky diode ❊❏ VR Varistor, silicon ❊❏ SFPB SMD Schottky diode ❊❏ 2SA EIAJ-registered PNP transistor ▲❏ SFPE SMD Schottky diode ❊❏ 2SB EIAJ-registered PNP Darlington transistor ▲❏ SFPJ SMD Schottky diode ❊❏ 2SC EIAJ-registered NPN transistor ▲❏ SFPL SMD ultra-fast recovery rectifier ❊❏ 2SD EIAJ-registered NPN Darlington transistor ▲❏ SFPM SMD rectifier ❊❏ 2SK EIAJ-registered MOSFET SFPZ SMD power Zener diode ❊❏ SG Sanken flange-mount/press-fit rectifier SHV Sanken high-voltage axial-lead rectifier SI Sanken IC SID Sanken IR LED ●✖❏ ❊❏ ●✩✖❏ SLA Sanken large array SLS Sanken switching power supply SMA Sanken medium array SML Sanken bicolor LED ❏ ●✩✖❏ ●✖❏ ❏ ❊❏ SPB Sanken SMD Schottky barrier diode SPF Sanken quad sink driver SPJ Sanken SMD Schottky barrier diode ❊❏ SPX Sanken ultra-fast recovery diode ❊❏ SPZ Sanken power Zener diode SSB Sanken Schottky barrier diode SSE Sanken switching power supply - SSF Sanken switching power supply - SSG Sanken switching power supply - SSH Sanken switching power supply - STA Sanken transistor array STR Sanken transistor regulator 78 ● ❏ ❊❏ ●■✩❏ ✩❏ For detailed information, see latest issue of ● ❊ ■ ✩ ✖ ★ ❏ ▲ Devices for Automotive Applications, bulletin C01EA0 Silicon Diodes, bulletin D01EB0 Thyristors and Triacs, bulletin D03EB0 IC Regulators, bulletin I01EC0 Stepper Motor Driver ICs, bulletin I02EA0 Light-Emitting Diodes, bulletin L01EA0 Semiconductor Short-Form Catalog, bulletin O01EC0 Power Transistors, bulletin T01EC0 www.allegromicro.com A Sanken Company ■❏ ❏ U.S. — SALES OFFICES & MANUFACTURERS REPRESENTATIVES U.S. Sales Offices Allegro MicroSystems, Inc. 10 Hughes St., Suite A206 Irvine, CA 92618 TEL: (949) 460-2003 FAX: (949) 460-7837 Allegro MicroSystems, Inc. 300 Orchard City Drive, Suite 107 Campbell, CA 95008 FAX: (408) 871-7577 Allegro MicroSystems, Inc. (Distribution Office) 554 Mohave Circle Huntington, CT 06484 TEL: (203) 929-8706 FAX: (203) 929-8707 Allegro MicroSystems, Inc. 16002 Seminole Blvd. Brooksville, FL 34601 TEL: (352) 799-7722 FAX: (352) 799-5145 Allegro MicroSystems, Inc. 120 Broadview Village Sq., #414 Broadview, IL 60153 TEL: (708) 352-9367 FAX: (708) 352-9369 Allegro MicroSystems, Inc. 912 East Rollins Rd., Suite 190 Round Lake Beach, IL 60073 TEL: (847) 265-7107 FAX: (847) 265-7108 Allegro MicroSystems, Inc. 2529 Commerce Dr., Suite G Kokomo, IN 46902 TEL: (765) 854-2266 FAX: (765) 854-2262 Allegro MicroSystems, Inc. (Automotive Sales) 6435 W. Jefferson Blvd., Suite 200 Fort Wayne, IN 46804 TEL: (219) 625-5541 FAX: (219) 625-5543 Allegro MicroSystems, Inc. (Distribution Office) 306-1C South Main St. #126 Ann Arbor, MI 48104 TEL: (734) 426-9390 FAX: (734) 426-9447 Allegro MicroSystems, Inc. P.O. Box 226 4737 County Rd #101 Minnetonka, MN 55345 TEL: (952) 380-3424 FAX: (952) 380-3425 First Rep (Los Angeles, Orange County) 11145 Tampa Ave, Suite 25B Porter Ranch, CA 91326 TEL: (818) 831-3158 FAX: (818) 831-9861 Allegro MicroSystems, Inc. One Sagamore Place Hillsborough, NC 27278 TEL: (919) 471-1553 FAX: (919) 471-1754 Allegro MicroSystems, Inc. 175 Sidesaddle Place West Chester, PA 19382 TEL: (610) 399-8692 FAX: (610) 399-8693 LORDSco (Sacramento, Stockton, Fresno) 11802 Tom Ray Drive Grass Valley, CA 95949 TEL/FAX: (530) 268-6349 Allegro MicroSystems, Inc. 502 Rose Drive Allen, TX 75002 TEL: (972) 747-9014 FAX: (972) 747-9015 Pro Associates (San Francisco Bay Area) 890 Saratoga Ave San Jose, CA 95129 TEL:(408) 248-5300 FAX:(408) 244-7939 Allegro MicroSystems, Inc. 8900 Viscount, Suite 312 El Paso, TX 79925 TEL: (915) 857-7172 FAX: (915) 857-2520 Colorado U.S. Manufacturer’s Representatives Alabama Novus SSI 2905 Westcorp Blvd., Suite 120 Huntsville, AL 35805 TEL: (256) 534-0044 FAX: (256) 534-0186 Alaska L-Squared 11416 Slater Ave NE #108 Kirkland, WA 98033 TEL: (206) 525-8555 FAX: (206) 527-0882 Arizona Addem 6220 E. Thomas Rd., Suite 303 Scottsdale, AZ 85251 TEL: (480) 421-9270 FAX: (480) 421-9274 Arkansas CompTech Sales 2313 Brookhollow Plaza Dr. Arlington, TX 76006 TEL: (817) 640-8200 FAX: (817) 640-8204 California Addem (San Diego, Imperial County) 832 Camino Del Mar #4 Del Mar, CA 92014 TEL: (858) 794-1999 FAX: (858) 755-6757 Compass Marketing 14142 Denver West Parkway, Suite 200 Golden, CO 80401 TEL: (303) 277-0456 FAX: (303) 277-0429 Connecticut Kitchen & Kutchin 154 State St. North Haven, CT 06473 TEL: (203) 239-0212 FAX: (203) 234-9108 Delaware TAI Corporation 214 Flynn Ave Moorestown, NJ 08057 TEL: (856) 778-5353 FAX: (856) 778-7828 District of Columbia TAI Corp. 10010 Junction Drive #103 Annapolis Junction, MD 20701 TEL: (301) 490-3660 FAX: (301) 490-3156 Florida Semtronic Associates, Inc. (Central Florida) 600 South North Lake Blvd., Suite 220 Altamonte Springs, FL 32701 TEL: (407) 831-8233 FAX: (407) 831-2844 Semtronic Associates, Inc. (Distribution Office) 600 South North Lake Blvd., Suite 270 Altamonte Springs, FL 32701 TEL: (407) 831-0451 FAX: (407) 831-6055 www.allegromicro.com A Sanken Company 79 U.S. — MANUFACTURERS REPRESENTATIVES U.S. Manufacturer’s Representatives (cont’d) Semtronic Associates, Inc. (West Coast of Florida) 14004 Roosevelt Blvd., Suite 604 Clearwater, FL 33762 TEL: (727) 507-0504 FAX: (727) 539-0601 Semtronic Associates, Inc. (South Florida) 3301 North West 55th St. Fort Lauderdale, FL 33309 TEL:(954) 731-2484 FAX: (954) 731-1019 R.O. Whitesell & Associates 533 Airport North Office Park Fort Wayne, IN 46825 TEL: (219) 489-0588 FAX: (219) 489-5733 R.O. Whitesell & Associates 5900 So. Main St., Suite 100 Clarkston, MI 48346 TEL: (248) 620-9640 FAX: (248) 620-9680 Iowa R.O. Whitesell & Associates 7484 Main St. Jenison, MI 49428 TEL: (616) 457-1717 FAX: (616) 457-2280 Dy-Tronix Inc. 1221 Park Place NE Cedar Rapids, IA 52402 TEL: (319) 294-9400 FAX: (319) 294-9300 Minnesota Mission Technologies 8120 Penn Ave South, Suite 433 Bloomington, MN 55431 TEL: (952) 881-6767 FAX: (952) 881-6969 Kansas Dy-Tronix Inc. 5001 College Blvd., Suite 106 Leawood, KS 66211 TEL: (913) 339-6333 FAX: (913) 339-9449 Georgia Novus SSI 6115-A Oakbrook Parkway Norcross, GA 30093 TEL: (770) 263-0320 FAX: (770) 263-8946 Hawaii First Rep 11145 Tampa Ave, Suite 25B Porter Ranch, CA 91326 TEL: (818) 831-3158 FAX: (818) 831-9861 Idaho Electrodyne 825 E. 4800 South, Suite 120 Salt Lake City, UT 84107 TEL: (801) 264-8050 FAX: (801) 264-8065 Illinois Phase II Marketing (Northern Illinois) 2260 Hicks Rd., Suite 410 Rolling Meadows, IL 60008 TEL: (847) 577-9401 FAX: (847) 577-9491 Dy-Tronix, Inc. (Southern Illinois) 12165 Bridgeton Square Drive Bridgeton, MO 63044 TEL: (314) 291-4777 FAX: (314) 291-3861 Indiana R.O. Whitesell & Associates 3334 W. Founders Road P.O. Box 681070 Indianapolis, IN 46268 TEL: (317) 876-9000 FAX: (317) 876-0434 80 Mississippi Dy-Tronix Inc. 1999 Amidon, Suite 322 Wichita, KS 67203 TEL: (316) 838-0884 FAX: (316) 839-2645 Novus SSI 2905 Westcorp Blvd., Suite 120 Huntsville, AL 35805 TEL: (256) 534-0044 FAX: (256) 534-0186 Kentucky Missouri R.O. Whitesell & Associates 2620 Wilhite Dr., Suite 202 Lexington, KY 40503 TEL: (859) 277-4904 FAX: (859) 277-5116 Dy-Tronix Inc. 12165 Bridgeton Square Drive Bridgeton. MO 63044 TEL: (314) 291-4777 FAX: (314) 291-3861 Louisiana Montana CompTech Sales 11191 Westheimer, Suite 890 Houston, TX 77042 TEL: (281) 395-9920 FAX: (281) 890-1355 Electrodyne 825 E. 4800 South, Suite 120 Salt Lake City, UT 84107 TEL: (801) 264-8050 FAX: (801) 264-8065 Maryland Nebraska TAI Corporation 10010 Junction Drive, Suite 103 Annapolis Junction, MD 20701 TEL: (301) 490-3660 FAX: (301) 490-3156 Dy-Tronix Inc. 5001 College Blvd., Suite 106 Leawood, KS 66211 TEL: (913) 339-6333 FAX: (913) 339-9449 Massachusetts, Maine, & New Hampshire Kitchen & Kutchin 6 Lincoln Knoll Burlington, MA 01803 TEL: (781) 229-2660 FAX: (781) 273-5895 U.S. Manufacturer’s Representatives (cont’d) Nevada Michigan R.O. Whitesell & Associates 26105 Orchard Lake Road, Suite 311 Farmington Hills, MI 48334 TEL: (248) 473-5454 FAX: (248) 473-1165 Addem 6220 E. Thomas Rd., Suite 303 Scottsdale, AZ 85251 TEL: (480) 421-9270 FAX: (480) 421-9274 www.allegromicro.com A Sanken Company U.S. — MANUFACTURERS REPRESENTATIVES LORDSco 11802 Tom Ray Drive Grass Valley, CA 95949 TEL/FAX: (530) 268-6349 New Jersey Astrorep Inc. (Northern New Jersey) 103 Cooper Street Babylon, NY 11702 TEL: (516) 422-2500 FAX: (516) 422-2504 North Dakota Puerto Rico Mission Technologies 8120 Penn Ave South, Suite 433 Bloomington, MN 55431 TEL: (612) 881-6767 FAX: (612) 881-6969 Electronic Sales Associates Calle 12 #293 Extension San Agustin Rio Piedras, PR 00926 TEL: (787) 767-6706 FAX: (787) 754-9170 Ohio R.O. Whitesell & Associates 6161 Busch Blvd., Suite 315 Columbus, OH 43229 TEL: (614) 888-9396 FAX: (614) 888-8792 TAI Corporation (Southern New Jersey) 214 Flynn Ave Moorestown, NJ 08057 TEL: (856) 778-5353 FAX: (856) 778-7828 R.O. Whitesell & Associates 1440 Snow Rd., Suite 201 Cleveland, OH 44131 TEL:(216) 661-2613 FAX: (216) 661-3192 New Mexico Addem 6220 E. Thomas Rd., Suite 303 Scottsdale, AZ 85251 TEL: (480) 421-9270 FAX: (480) 421-9274 R.O. Whitesell & Associates 4133 S. Dixie Ave. Dayton, OH 45439 TEL: (937) 298-9546 FAX: (937) 298-2856 Oklahoma New York CompTech Sales 2313 Brookhollow Plaza Dr. Arlington, TX 76006 TEL: (817) 640-8200 FAX: (817) 640-8204 Astrorep Inc. (Long Island Area) 103 Cooper Street Babylon, NY 11702 TEL: (516) 422-2500 FAX: (516) 422-2504 Oregon Elcom Sales, Inc. (Upstate New York) Meadowgate Office Park 101 Sully’s Trail, Building 20 Pittsford, NY 14534 TEL:(716) 385-1400 FAX: (716) 248-8531 L-Squared 15247 NW Greenbrier Pkwy. Beaverton, OR 97006 TEL: (503) 629-8555 FAX: (503) 645-6196 Elcom Sales, Inc. (Upstate New York) 1583 East Genesee Street, P.O. Box 836 Skaneateles, NY 13152 TEL: (315) 685-8967 FAX: (315) 685-6273 R.O. Whitesell Associates (Western Pennsylvania) 311 Jonnet Bldg. 4099 William Penn Hwy. Monroeville, PA 15146 TEL: (412) 374-8714 FAX: (412) 374-8715 North Carolina Novus SSI 102-L Commonwealth Court Cary, NC 27511 TEL: (919) 460-7771 FAX: (919) 460-5703 Pennsylvania TAI Corporation (Eastern Pennsylvania) 214 Flynn Ave Moorestown, NJ 08057 TEL: (856) 778-5353 FAX: (856) 778-7828 Rhode Island Kitchen & Kutchin 6 Lincoln Knoll Burlington, MA 01803 TEL: (781) 229-2660 FAX: (781) 273-5895 South Carolina Novus SSI 102-L Commonwealth Court Cary, NC 27511 TEL: (919) 460-7771 FAX: (919) 460-5703 South Dakota Mission Technologies 8120 Penn Ave South, Suite 433 Bloomington, MN 55431 TEL: (952) 881-6767 FAX: (952) 881-6969 Tennessee Novus SSI (Western Tennessee) 2905 Westcorp Blvd., Suite 120 Huntsville, AL 35805 TEL: (256) 534-0044 FAX: (256) 534-0186 Novus SSI (Eastern Tennessee) 6115-A Oakbrook Parkway Norcross, GA 30093 TEL: (770) 263-0320 FAX: (770) 263-8946 Texas CompTech Sales 2313 Brookhollow Plaza Dr. Arlington, TX 76006 TEL: (817) 640-8200 FAX: (817) 640-8204 CompTech Sales 8760-A Research Blvd., Suite 493 Austin, TX 78758 TEL: (512) 257-8553 FAX: (512) 272-9436 www.allegromicro.com A Sanken Company 81 AMERICAS — REPRESENTATIVES & DISTRIBUTORS U.S. Manufacturer’s Representatives (cont’d) CompTech Sales 11191 Westheimer, Suite 890 Houston, TX 77042 TEL: (281) 395-9920 FAX: (281) 890-1355 Utah Electrodyne 825 E. 4800 South, Suite 120 Salt Lake City, UT 84107 TEL: (801) 264-8050 FAX: (801) 264-8065 Vermont Kitchen & Kutchin 6 Lincoln Knoll Burlington, MA 01803 TEL: (781) 229-2660 FAX: (781) 273-5895 Wyoming Compass Marketing 14142 Denver West Parkway, Suite 200 Golden, CO 80401 TEL: (303) 277-0456 FAX: (303) 277-0429 Canada Manufacturer’s Representatives British Columbia L-Squared 11416 Slater Ave NE #108 Kirkland, WA 98033 TEL: (206) 525-8555 FAX: (206) 527-0882 Allegro MicroSystems, Inc. 23 Rolling Meadows Way Penfield, New York 14526-1264 TEL: +1 (716) 377-7720 FAX: +1 (716) 377-1058 Clarsand Ltd. 16 Regan Rd. Unit 39-41 Brampton, ON L7A 1C1 Canada TEL: (905) 840-6066 FAX: (905) 840-6091 TAI Corporation 10010 Junction Drive, Suite 103 Annapolis Junction, MD 20701 TEL: (301) 490-3660 FAX: (301) 490-3156 Central & South America Manufacturer’s Representatives Argentina & Brazil Clarsand Ltd. 38 Auriga Dr. #248 Nepean, ON K2E 8A5 Canada TEL: (613) 224-6420 FAX: (613) 224-5661 HITECH Electr. Indl & Coml. LTDA Rua Branco de Moraes 489 Ch. Santo Antonio - Sao Paulo, 04718-010 SP Brazil TEL: +55 (11) 5188-4140 FAX: +55 (11) 5188-4100 Washington Quebec L-Squared 11416 Slater Ave NE #108 Kirkland, WA 98033 TEL: (206) 525-8555 FAX: (206) 527-0882 Clarsand Ltd. 7575 Rt. Trans-Canadienne #500 St. Laurent, QC H4T 1V6 Canada TEL: (514) 339-1115 FAX: (514) 339-1918 West Virginia R.O. Whitesell & Associates 6161 Busch Blvd., Suite 315 Columbus, OH 43229 TEL: (614) 888-9396 FAX: (614) 888-8792 Wisconsin Phase II Marketing (Eastern Wisconsin) 205 Bishops Way, Suite 220 Brookfield, WI 53005 TEL: (262) 797-9986 FAX: (262) 797-9935 Mission Technologies (Western Wisconsin) 8120 Penn Ave South, Suite 433 Bloomington, MN 55431 TEL: (612) 881-6767 FAX: (612) 881-6969 82 Ten Four Ltd. (Sanken Semiconductors Only) P.O. Box 460 Main & Liberty St. Russell, PA 16345 TEL: (814) 757-4444 or (800) 8-SANKEN (800 872-6536) FAX: (814) 757-5400 Central & South America Sales Office Ontario Virginia Rochester Electronics (Discontinued Allegro Products) 10 Malcolm Hoyt Dr. Newburyport, MA 01950 TEL: (978) 462-9332 FAX: (978) 462-9512 North America Franchised Distributors Arrow Electronics 25 Hub Drive Melville, NY 11747 TEL: (800) 777-2776 for local distributor Bell MicroProducts 1941 Ringwood Ave San Jose, CA 95131-1721 TEL: (800) 995-1999 for local distributor Mexico R.O. Whitesell & Associates Transvina Retes Col. San Felipe Chihuahua, Mexico C.P. 31240 TEL: +52 (14) 132596 Grupo Industrial GEA S.A. 324 N. Zaragosa Rd., Suite 302 El Paso, TX 79907 TEL: +52 (16) 17-09-95 or +52 (16) 17-99-98 FAX: +52 (16) 18-00-94 Grupo Industrial GEA S.A. Calle Sn. Mateo Evangelista, Suite 4141 Colonia Lomas De Sn. Miguel Guadalajara, Jalisco 45570 Mexico Newark Electronics 4801 N. Ravenswood Chicago, IL 60640 TEL: (800) 4-Newark (800 463-9275) for local distributor Nu Horizons 70 Maxess Melville, NY 11747 TEL: (888) 747-NUHO (888 747-6846) for local distributor www.allegromicro.com A Sanken Company EUROPE — REPRESENTATIVES & DISTRIBUTORS Europe Direct Offices Allegro MicroSystems Europe Ltd. (Marketing and Application Center) 27 rue De La Paix F-74000 Annecy, France TEL: +33 450512359 FAX: +33 450512083 Allegro MicroSystems Europe Ltd. (Automotive Products Only) Lessingstrasse 29 D-73565 Spraitbach, Germany TEL: +49 7176 3643 FAX: +49 7176 3876 Allegro MicroSystems Europe Ltd. Balfour House, Churchfield Rd. Walton-on-Thames, Surrey KT12 2TD United Kingdom TEL: +44 1932 253355 FAX: +44 1932 246622 Europe Representatives and Distributors Austria UR GmbH (Distributor, Sanken Power Supply Products) Seegasse 51 Postfach 228 A - 9020 Klagenfurt, Austria TEL: +43 463 345953 FAX: +43 463 345936 Benelux COMPELEC bvba (Representative) JV Ruusbroeclaan 10 B-3080 Tervuren, Belgium TEL: +32 27671748 FAX: +32 27678435 France Ireland INSIGHT COMPRESS (Representative & Distributor) 47 rue de l’Esterel Silic 539 F-94633 Rungis Cedex, France TEL: +33 141802900 FAX: +33 146866763 MEMEC IRELAND LTD (Distributor) Gardner House Bank Place Limerick, Ireland TEL: +353 61 411 842 FAX: +353 61 411 888 Israel Germany MTE Migvan (Representative & Distributor) 13 Hashiloach St., PO Box 7022 Petach-Tikva 49170, Israel TEL: +972 39240784 FAX: +972 39240787 SSG Halbleiter Vertriebs-GmbH (Representative) Adlerweg 2 D-79856 Hinterzarten, Germany TEL: +49 7652 9106 0 FAX: +49 7652 767 Italy Matronic Electronic Vertriebs GmbH (Distributor, Allegro Products Only) Vor dem Kreuzberg 28 D-72070 Tuebingen, Germany TEL: +49 7071 9444 0 FAX: +49 7071 45943 INSIGHT GmbH (Distributor) Leonhardsweg 2 D-82008 Unterhaching, Germany TEL: +49 89 61108 0 FAX: +49 89 61108 110 CARLO GAVAZZI CEFRA SpA (Representative & Distributor) via Stendhal 55 I-20144 Milano, Italy TEL: +39 02 4241471 FAX: +39 02 48950882 or +39 02 42291305 (Commercial Dept) UR SpA (Distributor, Sanken Power Supply Products) viale Edison, 44 20090 Trezzano s/N, Milano, Italy TEL: +39 02 48401580 FAX: +39 02 48401581 SPOERLE Electronic (Distributor) Max Planck Strasse 1-3 D-63303 Dreieich, Germany TEL: +49 6103 3040 FAX: +49 6103 304487 Norway UR GmbH (Distributor, Sanken Power Supply Products) Postfach 2261 D-92212 Amberg, Germany TEL: +49 9621 910 0 FAX: +49 9621 910 500 INSIGHT MEMEC (Representative & Distributor) P.O. Box 194 Smedsvingen 4 N0-1378 Nesbru, Norway TEL: +47 6677 6540 FAX: +47 6677 6501 South Africa Denmark Greece Arrow Denmark A/S (Representative & Distributor) Smedeholm 13A DK-2730 Herlev, Denmark TEL: +45 44508200 FAX: +45 44508210 Finland INSIGHT MEMEC (Representative & Distributor) Kauppakaarre 1 SF-00700 Helsinki, Finland TEL: +358 (9) 350 8880 FAX: +358 (9) 3508 8828 Arrow Altech Distribution (Pty) LTD (Representative & Distributor) P.O. Box 71 Isando 1600, Republic of South Africa TEL: +27 11 9239600 FAX: +27 11 9239770 DIGITAL ELECTRONICS LTD. (Representative) 11A Theokritou St. 121-134 Peristeri Athens, Greece TEL: +30 15769695 and +30 15769695 FAX: +30 15753058 Spain India THERMAX ELECTRONICS LTD. (Representative) T-134, Bhosari Industrial Area Bhosari, Pune 411 026 India TEL: +91 20 712 0234 or +91 20 712 0235 (Marketing) FAX: +91 20 712 0042 ARGOS COMPONENTES ELECTRONICOS (Representative) Montseny 32 E-08012 Barcelona, Spain TEL: +34 93 2177655 FAX: +34 93 2177556 Arrow-Iberia Electronics SLU (Distributor) Albasanz, 75 E-28037 Madrid, Spain TEL: +34 913 043040 FAX: +34 913 272472 www.allegromicro.com A Sanken Company 83 EUROPE & ASIA PACIFIC — REPRESENTATIVES & DISTRIBUTORS Europe Representatives and Distributors (cont’d) UR S.A. (Distributor, Sanken Power Supply Products) Plaza de Vallvidrera, No. 7, C-2 E-08017 Barcelona, Spain TEL: +34 93 4069119 FAX: +34 93 4069573 Monolitic S.A. (Distributor) Avenida Hospital Militar 78-80 Entresuelo E-08023 Barcelona, Spain TEL: +34 93 2859292 FAX: +34 93 2841193 Sweden Broadband Technology AB (Representative) Virkesvagen 24C Box 92090 SE-12007 Stockholm, Sweden TEL: +46 8 644 93 19 FAX: +46 8 642 02 02 INSIGHT MEMEC UK LTD. (Distributor) The Gatehouse Gatehouse Way Aylesbury Bucks HP19 3DL United Kingdom TEL: +44 12963 30061 FAX: +44 12963 30065 Solid State Supplies plc. (Distributor) Eastlands Lane Paddock Wood Kent TN12 6BU United Kingdom TEL: +44 1892 836836 FAX: +44 1892 838841 UR Ltd. (Distributor, Sanken Power Supply Products) 1 Dorcan Business Village Murdoch Rd. Dorcan Swindon Wiltshire SN3 5HY United Kingdom TEL: +44 1793 439310 FAX: +44 1793 439311 Sanken Power Systems (UK) Ltd. Abercynon Mountain Ash Mid Glam. CF45 4XA South Wales, United Kingdom TEL: +44 3742333 FAX: +44 3742100 Insight Memec (Distributor) Danmarksgatan 46 Box 1230 SE-164 28 Kista, Sweden TEL: +46 8 506 656 00 FAX: +46 8 751.36.49 Switzerland Sanken Electric CO.,LTD. (Sanken Products) Lotte Building (22nd floor) 1, Sokong-dong Chung-Ku, Seoul, Korea TEL: +82 (2) 776-4206 FAX: +82 (2) 757-3247 Korea Sanken CO.,LTD. (Sanken Products) BG-1 Free Zone Export Masan 974-17 Yang Duk-Dong, Heolwon-Gu Masan, Korea TEL: +82-551-92-5961-6 FAX: +82-551-96-8938 , 92-5960 Sanken Electric Singapore PTE LTD. (Sanken Products) 150 Beach Road #14-03 The Gateway West Singapore 189720, Singapore TEL: +65 291-14775 FAX: +65 297-1744 Asia Pacific Representatives and Distributors Australia ANALOG Electronic Components P/L (Representative, Allegro Products) P.O. Box 596 Mulgrave Nth, 3170, Australia TEL: +61 (39) 5622882 FAX: +61 (39) 5622880 Asia Pacific Sales Offices TELION AG (Representative & Distributor) Postfach CH-8010 Zurich, Switzerland TEL: +41 1732 1631 FAX: +41 1732 1502 Turkey KAPMAN CO (Representative) Elektrokent A Blok Mehmet Akif Bulvari 11, Kat No 1445 TR-80270 Okmeydani - Istanbul, Turkey TEL: +90 212 2102705 FAX: +90 212 2100477 United Kingdom MSM Ltd. (Representative) Unit 28a Walton Business Centre 44/46 Terrace Rd. Walton-on-Thames Surrey KT 12 2SD United Kingdom TEL: +44 1932 254902 FAX: +44 1932 254903 84 AVNET Pacific Pty. Ltd. (Distributor, Allegro Products) Unit C, 6-8 Lyon Park Rd., Box 888 North Ryde NSW 2113, Australia TEL: +61 (29) 8781299 FAX: +61 (29) 8781266 Allegro MicroSystems, Inc. (Alllegro Products) 23 Rolling Meadows Way Penfield, New York 14526-1264 TEL: +1 (716) 377-7720 FAX: +1 (716) 377-1058 Sanken Electric Hong Kong Company LTD. (Sanken Products) 1018 Ocean Centre, Canton Road Kowloon, Hong Kong TEL: +852 275-5262 FAX: +852 2735-5494 TLX: 4598 (SANKEN HX) Sanken L.D. Co. Limited (Sanken Products) Rooms 703-704 Concordia Plaza 1 Science Museum Road T.S.T. East Kowloon, Hong Kong TEL: +852 271-3611 FAX: +852 2721-6405 TLX: 4806 (LDETC HX) Sanken Electric Co., Ltd. 1-11-1 Nishi-Ikebukuro Toshima-ku, Tokyo Japan TEL: +81 (3) 3986-6164 FAX: +81 (3) 3896-1400 TELEX: 0272-2323 (SANKEN J) IRH Components Pty. Ltd. (Distributor, Allegro Products) 1-5 Carter Street Homebush Bay NSW 2127, Australia TEL: +61 (29) 364-1766 FAX: +61 (29) 468-3505 CAPTRON (Distributor, Allegro Products) Unit 4, 29 Mitchell Rd. Brookvale NSW 2100, Australia TEL: +61 (29) 9055888 FAX: +61 (29) 9055851 China and Philippines RICHWOOD Electronics Co. Ltd. (Representative, Allegro Products) Room 1602 16F Hewlett Centre 54 Hoi Yuen Rd. Kwun Tong, Kowloon, Hong Kong TEL: +852 27979893 FAX: +852 27979906 www.allegromicro.com A Sanken Company ASIA PACIFIC — REPRESENTATIVES & DISTRIBUTORS Asia Pacific Representatives and Distributors (cont’d) SHANGHAI RICHWOOD Electronics Co. Ltd. (Representative, Allegro Products) Room 817, Building 3 Dong Hai Plaza No. 1486 Nanjing West Road Shanghai, 200040, People’s Republic of China TEL: +86 (21) 62474494 or +86 (21) 62474478 FAX: +86 (21) 62471436 Kentecal International Ltd. (Distributor, Allegro Products) 1611, Phase 2, Chai Wan Industrial City 70, Wing Tai Rd., Chai Wan, Hong Kong TEL: +852 25579983 FAX: +852 25583884 Daiwa Associate Holdings, Ltd. (Distributor, Allegro Products) 11/F, Block G, East Sun Industrial Center 16 Shing Yip Street, Kwun Tong Kowloon, Hong Kong TEL: +852 23413351 FAX: +852 23729744 Dalian Shimoda Electric co.,LTD. (Representative, Sanken Products) 1-12-5 Jenpen Industrial City Economic and Technical Development Zone People’s Republic of China TEL: +86-411-7511417 FAX: +86-411-7511796 Lee Sang Electronics Co. (Distributor, Allegro Products) Samsung Bldg. 109 131 Jangsa-Dong Chongro-Ku, Seoul, Korea TEL: +82 (2) 2687805 FAX: +82 (2) 2687807 New Zealand AVNET Pacific Pty. Ltd. (Distributor, Allegro Products) Private Bag 92821 274 Church St. Penrose, Auckland, New Zealand TEL: +64 (9) 6367801 FAX: +64 (9) 6367803 Singapore SABRE Technologies PTE Ltd. (Representative, Allegro Products) 104 Boon Keng Rd. #07-07 Kallang Basin Ind. Estate Singapore 339775 TEL: +65 2932003 FAX: +65 2930661 Teck International Pte.Ltd. (Distributor, Allegro Products) 1 Upper Aljunied Link #06-05/06 Blk A Joo Seng Warehouse Singapore 367901 TEL: +65 287-9633 FAX: +65 287-9622 Taiwan Japan & Korea RICHWOOD International Korea (Representative, Allegro Products) 44-1 Yoido-Dong, 12F, Dai Young Bld. Youngdungpo-ku, Seoul, Korea TEL: +82 (2) 7839784 FAX: +82 (2) 7846061 Segyung Electronics Corp. (Distributor, Allegro Products) 182-2, Jangsa-Dong Jongro-Ku, Seoul, Korea TEL: +82 (2) 5147877 FAX: +82 (2) 5143323 Jung Ho Trading Company (Distributor, Allegro Products) Rm. 158, Wonchang Bldg. 182-13, Jangsa-Dong Chongro-Ku, Seoul, Korea TEL: +82 (2) 2685489 FAX: +82 (2) 2798325 E-Channel System Corporation (Representative, Allegro Products) 6F-1, NO. 236, Sec. 2 Fu-Shin S. Road Taipei, Taiwan, Republic of China TEL: +886 (2) 2702 8204 FAX: +886 (2) 2702 8107 AV Tech Corporation (Distributor, Allegro Products) 12F, B Building, No. 106 Hsi-Chih Taipei Hsien, Taiwan, Republic of China TEL: +886 (2) 2696 2700 FAX: +886 (2) 2696 2690 Youchia Corp. (Distributor, Allegro Products) No. 691, Wen-Lin Road, Shih-Lin Taipei, Taiwan, Republic of China TEL: +886 (2) 2833 5111 FAX: +886 (2) 2833 5110 www.allegromicro.com A Sanken Company 85 INDEX TO IC and PMCM PART NUMBERS Part Number* 001 01 & 03 62 431 through 458 610-SA 610-SC 611 612 632-SA 632-SC 640 2003 through 2024 2064 through 2069 2501 and 2502 2525 2526 2535 2536 2540 2543 2544 2547 2549 2557 2559 2580 through 2588 2595 2596 and 2597 2803 through 2824 2878 through 2879-2 2916 2917 2918 2919 2936-120 2944 2961 2962 2981 through 2984 2985 2987 2998 3001 through 3005 3054-xx 3056 and 3058 3059 and 3060 3121 through 3123 3132 and 3133 3134 3141 through 3144 3161 3175 and 3177 3185 through 3189 Page – – 35 11 – 11 11 11 – 11 3 35 37 63 63 63 63 17 38 17 38 38 38 38 39 40 40 3 36 18 18 18 18 8 4 6 20 39 39 39 6 64 53 54 54 55 56 56 55 55 56 56 86 Part Number* 3195 and 3197 3210 3235 3240 3260 3275 3280 through 3283 3361 and 3362 3421 and 3422 3503 3507 and 3508 3515 and 3516 3517 and 3518 3845 3932 3933 3935 3951 3952 3953 3955 3957 3958 3964 3966 3968 3971 3972 3976 4021 through 4071 4310 through 5022 5140 5151 and 5154 5347 5348 5349 5350 5354 5355 5358 5364 5368 5454 5703 5707 and 5708 5800 and 5801 5804 5810-F 5811 5812-F 5815 Page 56 58 55 55 56 56 56 55 59 60 10 60 60 – 21 22 – 23 23 23 24 24 25 8 26 26 27 28 29 41 35 61 37 – – – – – – – – – 65 66 66 42 30 43 43 43 43 Part Number* 5818-F 5821 and 5822 5832 5833 5841 and 5842 5890 and 5891 5895 6010 through 6030 6118 6219 6259 6A259 6B259 6273 6B273 6275 6276 6595 6A595 6B595 6624 through 6676 6703 and 6704 6707 through 6709 6809 through 6810 6812 6817 6818 7024 through 7029 7042 and 7044 8001 8033 through 8150 8178 8211 and 8221 8401 and 8402 8501 8902-A 8920 8932-A 8958 83145 and 84145 * Complete part number includes additional characters to indicate operating temperature range and package style. www.allegromicro.com A Sanken Company Page 43 45 7 7 45 43 43 35 46 18 47 47 47 48 48 49 49 50 50 50 67 66 66 51 51 7 51 31 32 35 68 – 70 70 70 33 73 34 34 71 Some of the products described here are manufactured in Japan by Sanken Electric Co., Ltd. for sale by Allegro MicroSystems, Inc. Sanken Electric Co., Ltd. and Allegro MicroSystems, Inc. reserve the right to make, from time to time, such departures from the detail specifications as may be required to permit improvements in the performance, reliability, or manufacturability of their products. Therefore, the user is cautioned to verify that the information in this publication is current before placing any order. These products are not authorized for use as critical components in lifesupport appliances, devices, or systems without express written approval. The information included herein is believed to be accurate and reliable. However, Sanken Electric Co., Ltd. and Allegro MicroSystems, Inc. assume no responsibility for its use; nor for any infringements of patents or other rights of third parties which may result from its use. 87 www.allegromicro.com A Sanken Company Allegro MicroSystems, Inc. 115 Northeast Cutoff Box 15036 Worcester, MA 01615-0036, USA Tel: (1-508) 853-5000 Fax: (1-508) 853-3353 Allegro MicroSystems Europe Ltd. Balfour House, Churchfield Road Walton-on-Thames, Surrey KT12 2TD, UK Tel: (44-1932) 253355 Fax: (44-1932) 246622 Sanken Electric Company Ltd. 1-11-1 Nishi-Ikebukuro Toshima-ku, Tokyo, Japan Tel: (81-3) 3986-6164 Fax: (81-3) 3986-8637 Tlx: 0272-2323 (SANKEN J) A Sanken Company www.allegromicro.com AMS-127B December 2000
